Description

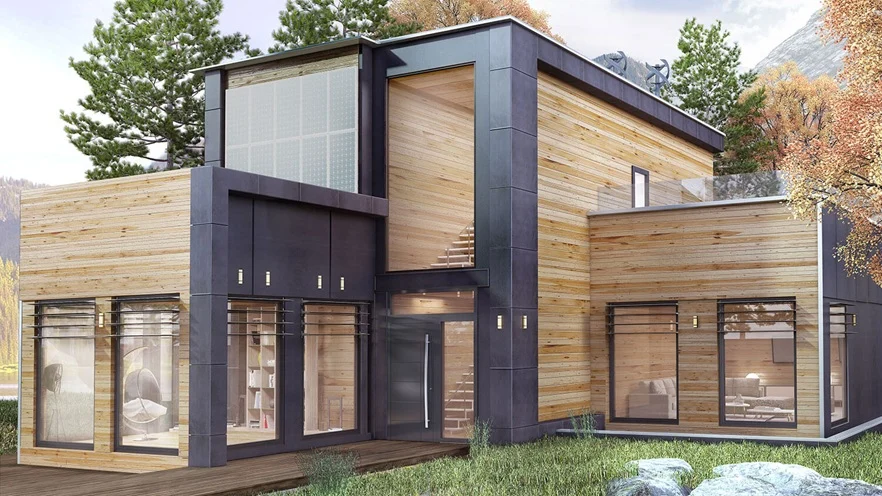

The SUPREME S91 is a high-performance thermal insulation system designed for robust, modern aluminium tilt & turn frames. Specially developed for passive buildings, the SUPREME S91 stands out for its exceptional performance in thermal insulation, watertightness, sound insulation and security, meeting the demanding requirements of advanced architectural applications.

Key Features

• Maximum energy efficiency thanks to its outstanding thermal performance, meeting passive building standards.
• Modern, contemporary design that combines clean lines with a robust construction.
• Enhanced security for increased protection and peace of mind.
• Excellent sound insulation, ensuring improved indoor comfort.
• Ease of use and outstanding functionality for a smooth and reliable everyday experience.
• Certified performance and guaranteed quality, ensuring long-term reliability.
• Enhanced structural stability, providing increased resistance under extreme weather conditions.

  Technical Specifications

• FRAME DEPTH
  91 mm
• MINIMUM VISIBLE FRAME HEIGHT
  93 mm
• MINIMUM VISIBLE WIDTH OF CENTRAL MULLION (DOUBLE SASH)
  151 mm
• GLAZING TYPE
  Double – Triple
• MAXIMUM GLAZING THICKNESS
  37–81 mm
• HARDWARE
  Euro-groove, Euro-nut
• SEALING TYPE
  Three-level perimeter sealing with foam and EPDM gaskets
• MINIMUM THRESHOLD HEIGHT
  13 mm
• THERMAL INSULATION TYPE
  54 mm-wide polyamides, ALUMIL Energy Bar, foam insulation material
• Performance
• WATERTIGHTNESS
  Class E1650
• AIR PERMEABILITY
  Class 4
• WIND LOAD RESISTANCE
  C5/B5
• SOUND INSULATION
  47 dB
• BURGLARY RESISTANCE
  RC2/RC3
• Features
• CONFIGURATIONS

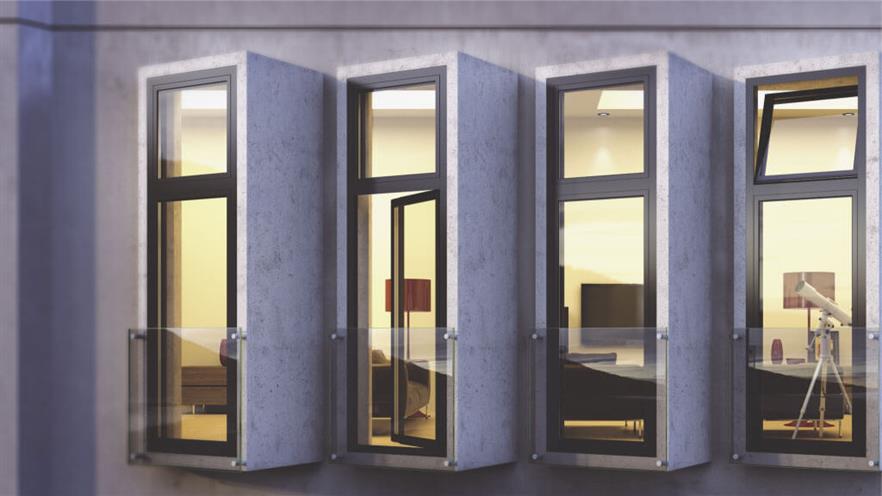

  All tilt & turn frame configurations
• SASH WEIGHT
  Up to 180 kg
• FRAME THERMAL INSULATION (Uf)
  67–1.1 W/m²K
